The new KMW is developed by the brand new RMX 3.0 plan. It is made by the new architecture configuration to achieve the purpose of both lightweight and strong, and pursue the concept of extremely balanced control!
Because of the upgrade for the aluminum lightweight integrated front head mount, the scheduled release time is slight adjusted to the 1st quarter of 2021.

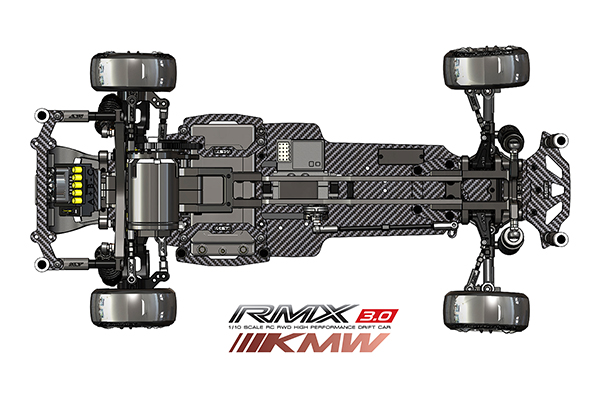

Limited edition RMX 3.0 KMW

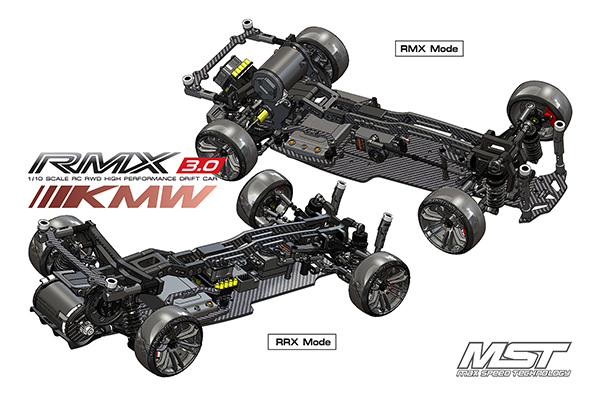

The newly designed frame integrates all MR/RR electric configurations. It is able to change multiple center of gravity distributions under the RMX and RRX structure, and has the diversified handling characteristics of the vehicle. The newly designed spur gear driving gearbox can easily switch the direction of rotation to achieve the requested driving direction of RMX and RRX.
The brand-new integrated design and all upgrade kits are fully included for showing with ultra-high performance!
KMW is a chassis with the latest technology/highest performance/high-standard quality.

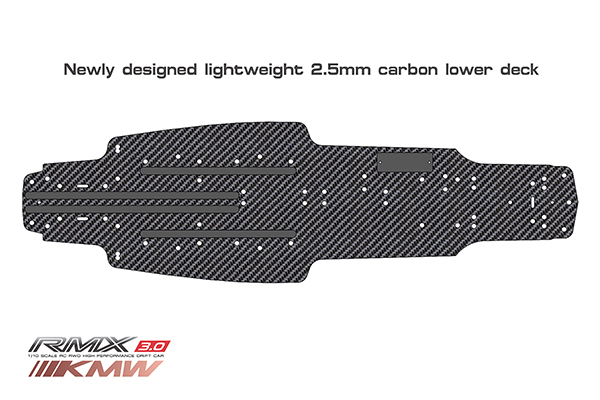

━ Newly designed lightweight 2.5mm carbon fiber deck

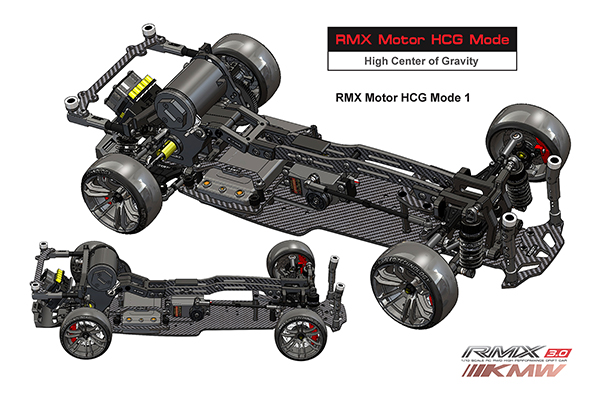

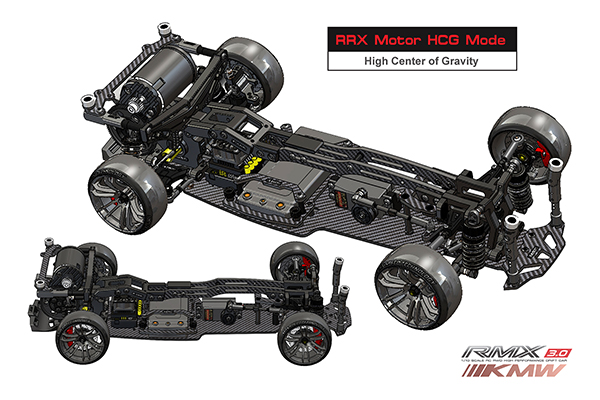

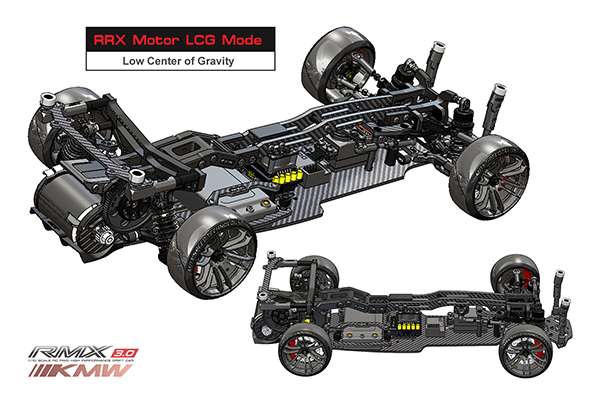

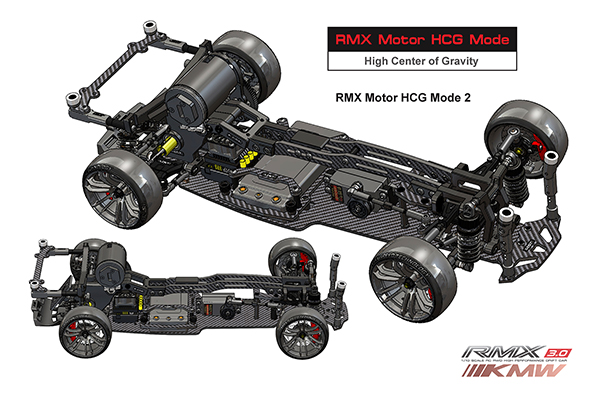

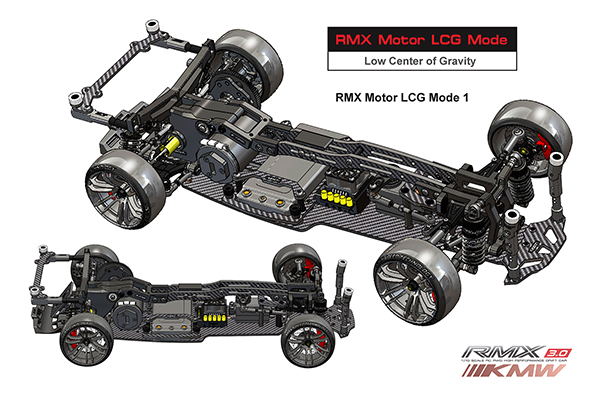

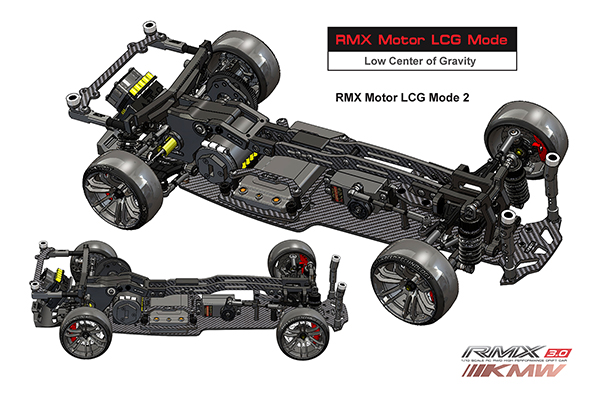

━ Changeable 6 settingscenter of gravity to motor distribution position position under RMX and RRX configuration

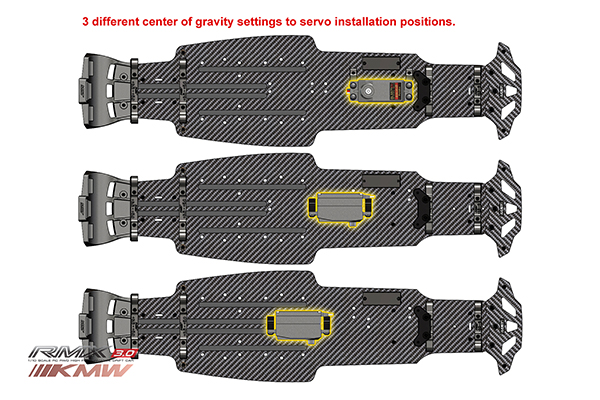

━ 3 different center of gravity settings to servo installation positions.

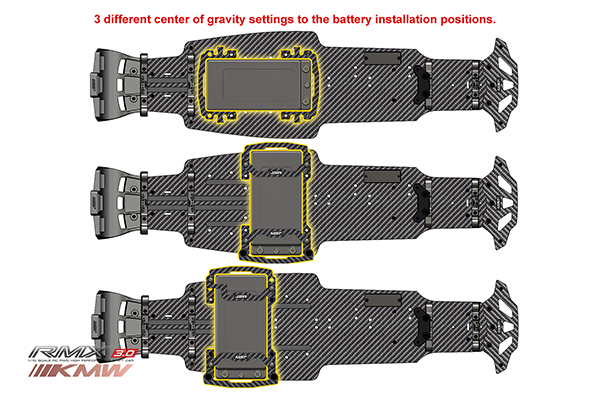

━ 3 different center of gravity settings to the battery installation positions.

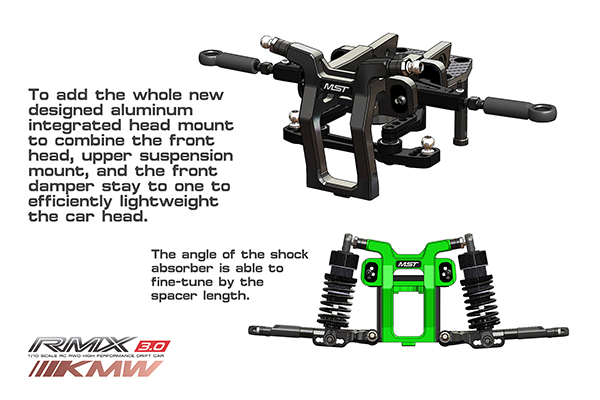

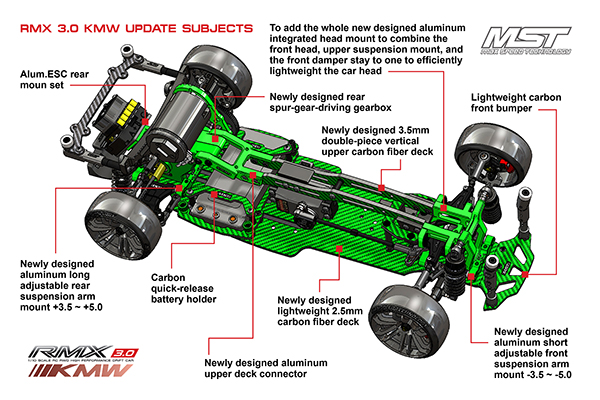

━ To add the whole new designed aluminum integrated head mount to combine the front head, upper suspension mount, and the front damper stay to one to efficiently lightweight the car head.

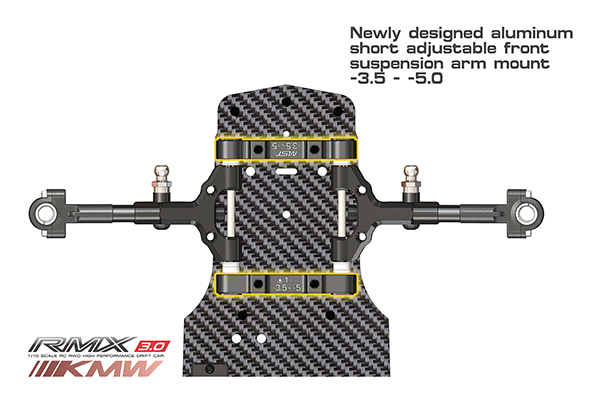

━ Newly designed aluminum short adjustable front suspension arm mount -3.5 ~ -5.0

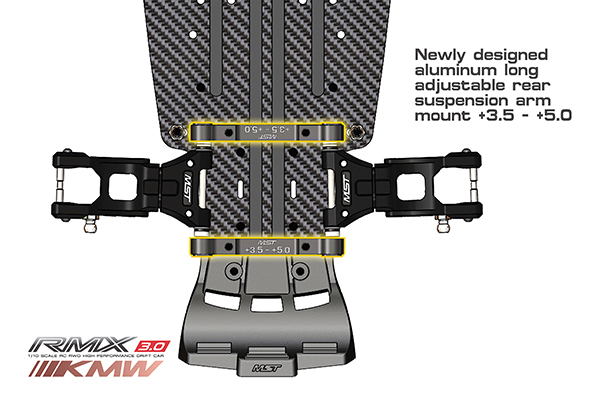

━ Newly designed aluminum long adjustable rear suspension arm mount +3.5 ~ +5.0

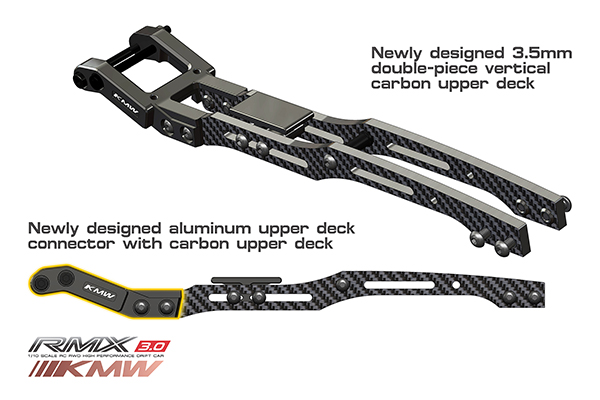

━ Newly designed 3.5mm double-piece vertical upper carbon fiber deck
━ Newly designed aluminum upper deck connector
━ Lightweight carbon front bumper
━ Carbon quick-release battery holder
━ Aluminum hydraulic shock absorber with CNC machined piston
━ Aluminum 4-section adjustable steering arm system for Ackerman angle changes
━ Aluminum ATK knuckle set is adjustable for KPI angle 0/6 degrees. The axle is adjustable 0 / 0.75 / 1.5 towing distance
━ The aluminum front upper/lower arm are corresponded to the front large steering
━ Aluminum 10-section adjustable upper suspension mount
━ The unique design of aluminum quick-adjusting front/rear shock mount

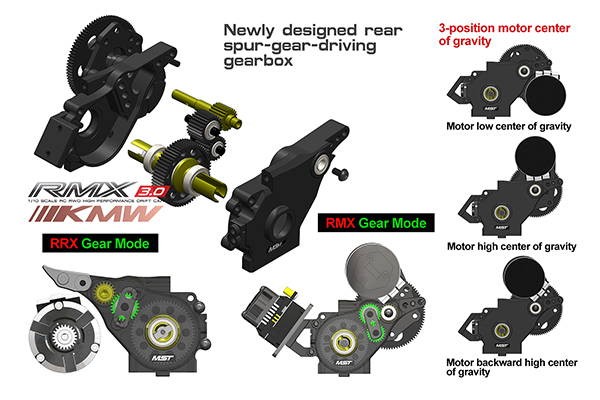

━ Newly designed rear spur-gear-driving gearbox
━ Alum.ESC rear moun set
━ Aluminum high smooth ball bearing differentials
━ Equipped with aluminum MB rear suspension system. Its abundant adjustment mechanismis able to change the vehicle roll force by change center of gravity in the curve to produce rear wheel steering, to increase or decrease the tail slip amount.
━ Aluminum 8-stage adjustable servo arm
━ Aluminum realistic brake disc caliper set
━ Equipped with stealth magnetic body shell post set
